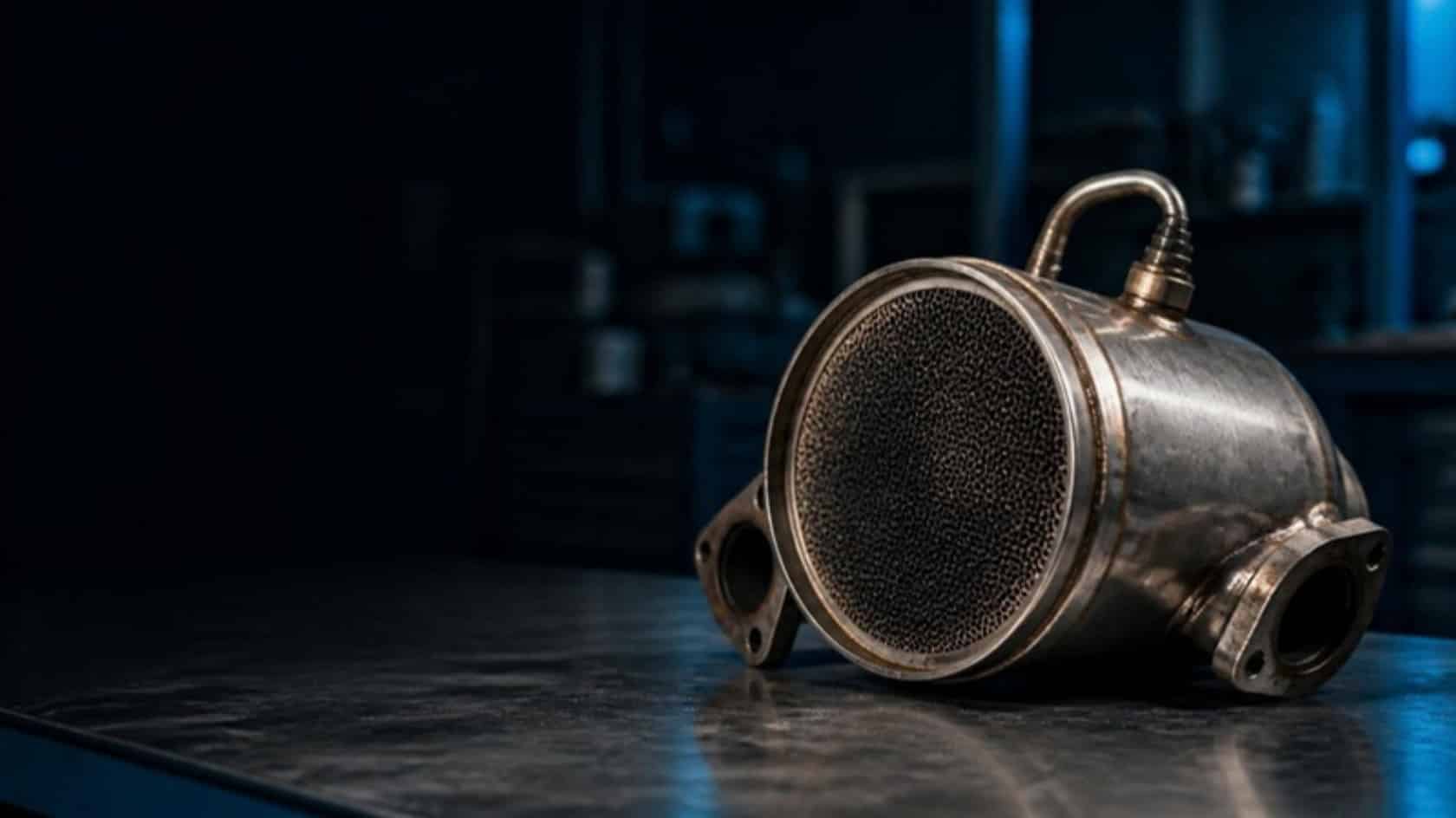

Diesel particulate filter (DPF) on a workshop bench
Diesel particulate filter

DPF delete and removal

DPF cleaning, replacement or removal at our Maidstone workshop. Removal is for off-road use only; for a road car we find and fix the cause.

  • Done in our Maidstone, Kent workshop
  • 4.8 from 2,200+ reviews
  • Full list of supported ECUs below

What it is and when it makes sense

A diesel particulate filter sits in the exhaust and traps soot. It is meant to burn that soot off during a regeneration cycle, which needs a sustained run at temperature. A car doing mostly short, cold journeys never completes one, the filter loads up, and eventually the car drops into limp mode.

At that point there are three honest options. If the filter is loaded but undamaged, a forced regeneration or an off-car clean will usually recover it, which is the cheapest route and keeps the car road legal. If it is cracked, melted or past cleaning it needs replacing, and we will tell you which aftermarket units are worth fitting. We also offer DPF removal, but for off-road use only.

Whichever route you take, the cause matters more than the filter. A DPF that blocked once will block again unless the reason is found: a leaking injector, a failed EGR valve, a glow plug fault or a sensor reading wrong. We diagnose that first.

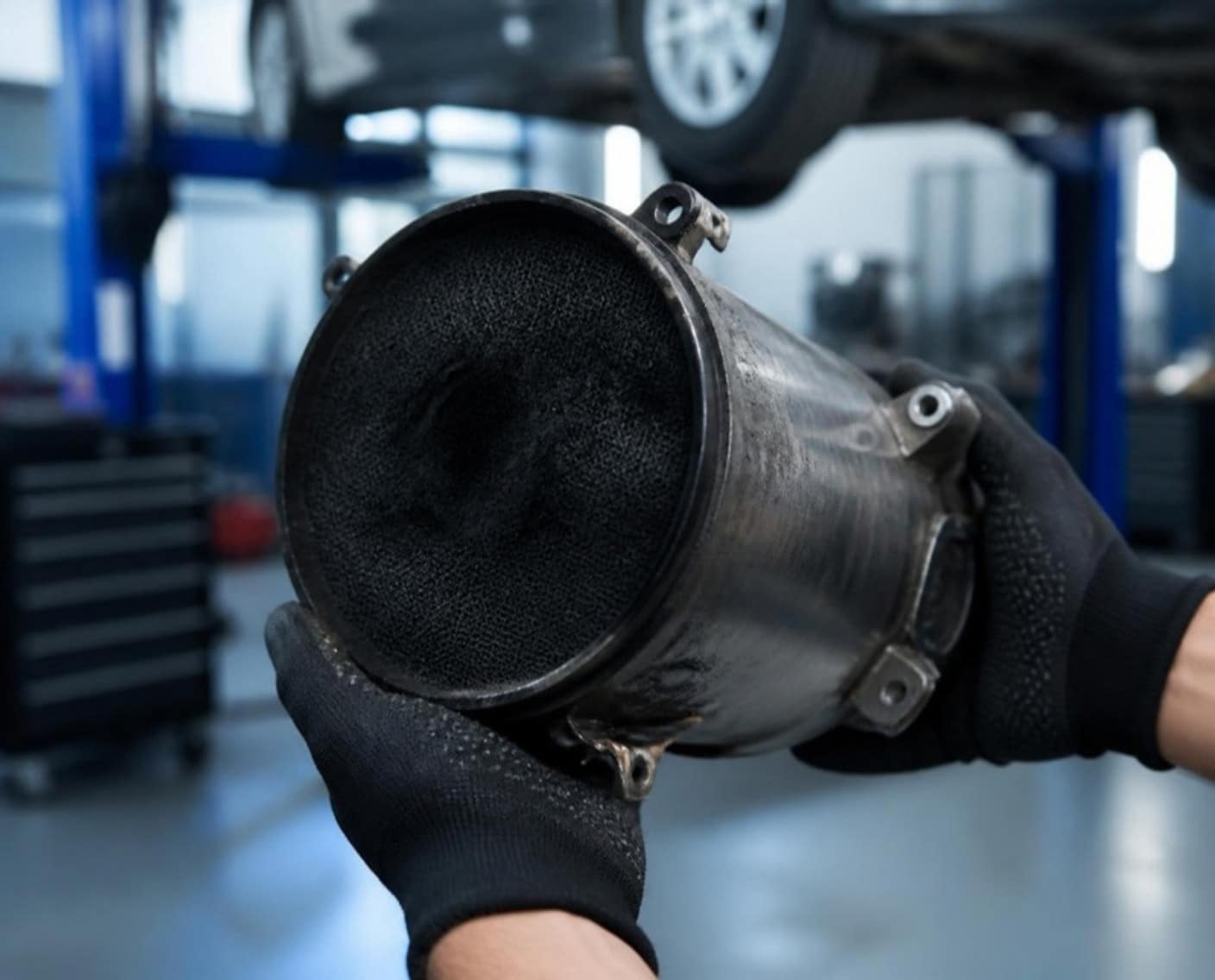

Sooty diesel particulate filter just removed from a car
How it works

Three steps

  1. Tell us the carSend your registration and what is going on. We check your ECU is supported and what the car actually needs.
  2. We quoteYou get a clear price before any work is booked, with our honest view if a repair would be the better route.
  3. Done in our workshopThe car comes to our Maidstone workshop. We read the ECU, make the change, write it back and check the car before it goes home.
Get a price

Tell us about your car

Send your registration and we will come back with what we can do and a fixed price. No obligation.

Before you send, want our discount codes?
Occasional offers on tuning, parts and servicing. No spam, and you can unsubscribe in one click.

Got it. We will check your ECU and come back with what we can do and a fixed price.

If you know them, these help us get the quote right first time. Entirely optional.

Loading the form…

Our workshop

Real people, our own ramps and dyno

Every job is done at our workshop in Maidstone, by the same team who answer the phone.

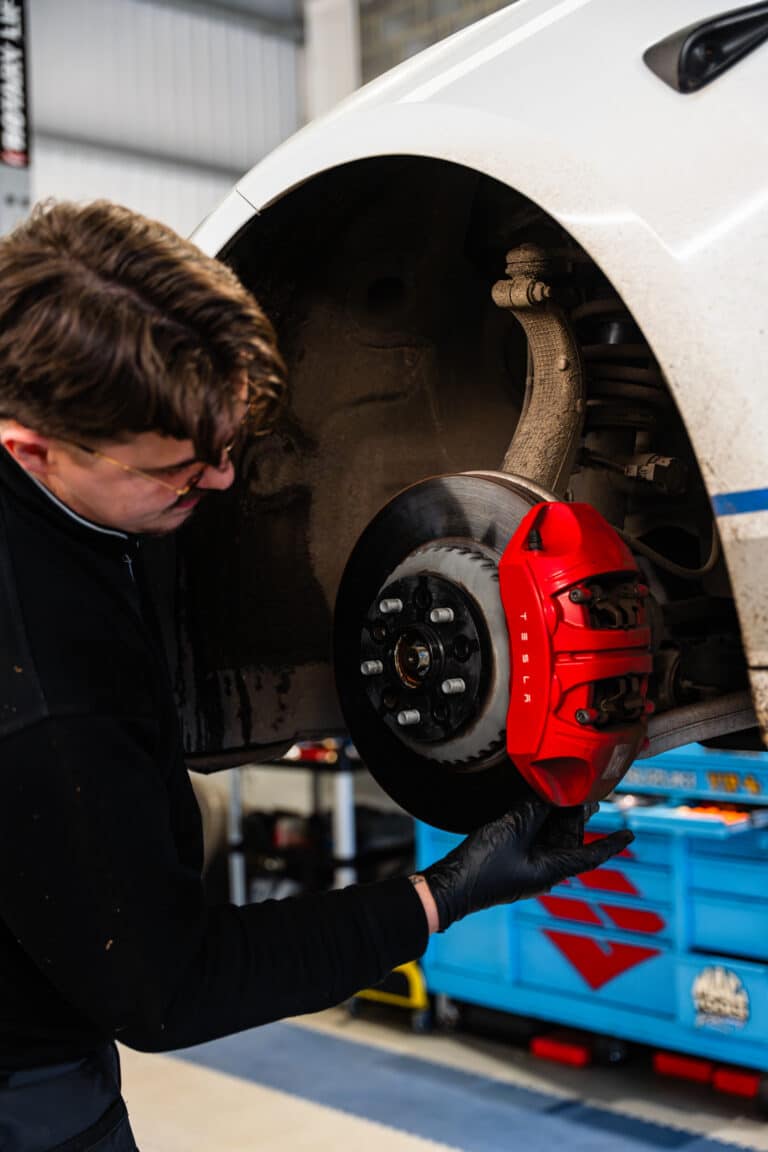

Working under a McLaren on the ramp at JF Automotive in MaidstoneReading and writing an ECU file at the JF Automotive workshopWorking on the brakes at JF Automotive in Maidstone

Meet the team →

COVERAGE

Vehicles and control modules we cover

DPF delete and removal is proven on 1,306 recorded vehicle and control module combinations, across 44 car and van makes. Search for your make or your ECU number below. If yours is not listed it may still be possible, so it is worth asking.

Alfa Romeo 13 control modules
Control module What the job involves
BOSCH EDC15C2 No extra steps
BOSCH EDC16C39 No extra steps
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C69 The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HW04P No extra steps
MARELLI MJ8DFHW00P No extra steps
MARELLI MJ8F3HW10C No extra steps
MARELLI MJ8F3HW1FP No extra steps
MARELLI MJ8F3HW1FL No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors must be unplugged.
MARELLI MJ8F3 No extra steps
MARELLI MJD6F3 No extra steps
MARELLI MJ9DF No extra steps
Audi 35 control modules
Control module What the job involves
BOSCH EDC16U1 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC16CP34 The temperature and pressure sensors must be unplugged.
BOSCH EDC17_U01 The temperature sensors can be left unplugged.
BOSCH EDC17_U05 No extra steps
BOSCH EDC17_CP04 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP14 No extra steps
BOSCH EDC17_CP20 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP44 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C46 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C54 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C64 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C74 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP74 No extra steps
BOSCH MD1_CP004 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1CP061 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CS004 No extra steps
DELPHI DCM3.7 The DPF pressure and temperature sensors can be left unplugged.
DELPHI DCM6.2V New No extra steps
SIEMENS PCR2.1 No extra steps
SIEMENS PPD1.1 No extra steps
SIEMENS PPD1.2 No extra steps
SIEMENS PPD1.3 No extra steps
SIEMENS PPD1.5 No extra steps
BOSCH EDC17CP54 No extra steps
BOSCH EDC17CP24 No extra steps
SIEMENS / CONTINENTAL PCR2.1 No extra steps
SIEMENS / CONTINENTAL PPD1.1 No extra steps
SIEMENS / CONTINENTAL PPD1.2 No extra steps
SIEMENS / CONTINENTAL PPD1.3 No extra steps
SIEMENS / CONTINENTAL PPD1.5 No extra steps
BOSCH MD1CS014 No extra steps
BOSCH MD1CS104 No extra steps
Bentley 1 control module
Control module What the job involves
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
BMW 15 control modules
Control module What the job involves
BOSCH EDC16C31 No extra steps
BOSCH EDC16C35 No extra steps
BOSCH EDC16CP35 No extra steps
BOSCH EDC17_C06 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C41 The DPF pressure and temperature sensors can be left unplugged. If the vehicle has low power after applying v2, please use v1.
BOSCH EDC17_C50 The DPF pressure and temperature sensors can be left unplugged. If the vehicle has low power after applying v2, please use v1.
BOSCH EDC17_C56 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C76 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP02 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP09 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP45 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP49 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1CP002 No extra steps
BOSCH MD1CP032 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS001 The DPF pressure and exhaust gas temperature sensors must be unplugged.
Chevrolet 10 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
BOSCH EDC16C42 No extra steps
BOSCH EDC17_CP18 New The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP47 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C59 The DPF pressure and temperature sensors must be unplugged.
DELCO E7x If you have some issues please use v1 beta solution.
DELCO E8x If you have some issues please use v1 beta solution.
DELCO E98 No extra steps
DELPHI DCM3.7AP No extra steps
DELPHI DCM3.7 No extra steps
Chrysler 4 control modules
Control module What the job involves
BOSCH EDC16CP31 No extra steps
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP27 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC16U31 No extra steps
Citroen 46 control modules
Control module What the job involves
BOSCH EDC16C0 No extra steps
BOSCH EDC16C34 No extra steps
BOSCH EDC16C39 No extra steps
BOSCH EDC16C3 No extra steps
BOSCH EDC16CP39 No extra steps
BOSCH EDC17C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C60 The DPF temperature sensors must be unplugged.
BOSCH EDC17_C81 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP11 No extra steps
BOSCH EDC17_CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP52 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS003 The DPF temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID807 No extra steps
CONTINENTAL SID807EVO No extra steps
DELPHI DCM3.4 No extra steps
DELPHI DCM3.5 No extra steps
DELPHI DCM6.2A No extra steps
DELPHI DCM6.2C No extra steps
DELPHI DCM7.1A No extra steps
DELPHI DCM7.1B No extra steps
DENSO No extra steps
MARELLI MJ8DFHW00P No extra steps
MARELLI MJ8F3HW00B No extra steps
MARELLI MJ8F3HW10C No extra steps
MARELLI MJ8F3HW10P No extra steps
MARELLI MJ8F3HW20P No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID201 No extra steps
SIEMENS SID208 No extra steps
SIEMENS SID803 We need both the MPC and FLS areas of the read.
SIEMENS SID803A No extra steps
MARELLI MJ8F3 No extra steps
BOSCH EDC16CO No extra steps
BOSCH EDC15C2 No extra steps
DELPHI DCM6.2 No extra steps
SIEMENS / CONTINENTAL SID803 No extra steps
SIEMENS / CONTINENTAL SID807 No extra steps
SIEMENS / CONTINENTAL SID201 No extra steps
SIEMENS / CONTINENTAL SID208 No extra steps
SIEMENS / CONTINENTAL SID803A No extra steps
VISTEON DCU-101 No extra steps
VISTEON DCU-102 No extra steps
VISTEON DCU-104 No extra steps
VISTEON DCU-106 No extra steps
Cupra 2 control modules
Control module What the job involves
BOSCH MD1_CS004 No extra steps
BOSCH MD1CS104 No extra steps
Dacia 13 control modules
Control module What the job involves
BOSCH EDC17_C42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS006 The DPF pressure sensor must be unplugged.
BOSCH MD1CS016 The DPF pressure sensor must be unplugged.
DELPHI DCM3.4 No extra steps
SIEMENS SID305 No extra steps
SIEMENS SID306 No extra steps
SIEMENS SID310 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
SIEMENS / CONTINENTAL SID305 No extra steps
SIEMENS / CONTINENTAL SID306 No extra steps
SIEMENS / CONTINENTAL SID304 No extra steps
SIEMENS / CONTINENTAL SID321 No extra steps
DR 1 control module
Control module What the job involves
BOSCH MD1CS089 No extra steps
DS 9 control modules
Control module What the job involves
BOSCH EDC17C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C60 The DPF temperature sensors must be unplugged.
BOSCH MD1CS003 The DPF temperature sensors must be unplugged.
CONTINENTAL SID807 No extra steps
CONTINENTAL SID807EVO No extra steps
DELPHI DCM3.5 No extra steps
DELPHI DCM6.2A No extra steps
DELPHI DCM7.1A No extra steps
Fiat 61 control modules
Control module What the job involves
BOSCH EDC16C39 The DPF temperature sensors must be unplugged. For ducato, DPF pressure sensor must also be disconnected.We need a full read of the module, not an OBD read.
BOSCH EDC17C69 The DPF pressure and exhaust gas temperature sensors must be unplugged.
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP52 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS003 The DPF temperature sensors must be unplugged.
BOSCH MD1CS006 The DPF pressure sensor must be unplugged.
BOSCH MD1CS069 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.5 No extra steps
DELPHI DCM7.1B No extra steps
DENSO No extra steps
MARELLI MJD6F3HWO3P The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HWO3R The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HWO3T The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HWO4P The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HWO4T The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6F3HWO4V The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHWO1A The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHWO1B The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHWO1C The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHWO2A The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHWO2B The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6JFHW1BM The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJD6O3HWO3A The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJ8DFHW00A No extra steps
MARELLI MJ8DFHW00P No extra steps
MARELLI MJ8DFHW00T No extra steps
MARELLI MJ8F3HW00A No extra steps
MARELLI MJ8F3HW00B No extra steps
MARELLI MJ8F3HW00D No extra steps
MARELLI MJ8F3HW10C No extra steps
MARELLI MJ8F3HW10L No extra steps
MARELLI MJ8F3HW10P No extra steps
MARELLI MJ8F3HW10W No extra steps
MARELLI MJ8F3HW1FL No extra steps
MARELLI MJ8F3HW1FP No extra steps
MARELLI MJ8F3HW20P No extra steps
MARELLI MJ8F3HW2FP No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJ9DFHW001 The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJ9DFHW002 The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJ9DFHW00A The DPF pressure and temperature sensors can be left unplugged.
SIEMENS SID803 No extra steps
SIEMENS SID803A No extra steps
VISTEON DCU10x No extra steps
MARELLI MJ9DF No extra steps
MARELLI MJ8F3 No extra steps
MARELLI MJ8F2 No extra steps
MARELLI MJ8DF No extra steps
MARELLI MJD6F3 No extra steps
BOSCH EDC17C42 No extra steps
BOSCH EDC16CP39 No extra steps
SIEMENS / CONTINENTAL SID803 No extra steps
SIEMENS / CONTINENTAL SID803A No extra steps
VISTEON DCU-101 No extra steps
VISTEON DCU-102 No extra steps
VISTEON DCU-104 No extra steps
VISTEON DCU-106 No extra steps
MARELLI MJ8DS No extra steps
Ford 52 control modules
Control module What the job involves
BOSCH EDC16C34 Disconnect urea ECU plug.
BOSCH EDC16CP39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP05 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP42 No extra steps
BOSCH EDC17CP65 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C70 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CP006 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CP061 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS005 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS025 No extra steps
CONTINENTAL SID212 The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID212EVO The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID807EVO No extra steps
DELPHI DCM3.5 No extra steps
DELPHI DCM6.1 No extra steps
DELPHI MPC555 New Full read required (MPC and FLS). The DPF pressure sensor can be left unplugged.
MARELLI MJD6F3HWO4P The DPF pressure and temperature sensors can be left unplugged.
MARELLI MJ8DFHW00P No extra steps
SIEMENS SID206 No extra steps
SIEMENS SID208 No extra steps
SIEMENS SID209 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID211 No extra steps
SIEMENS SID803 No extra steps
SIEMENS SID803A No extra steps
SIEMENS SID902 No extra steps
VISTEON DCU102 The DPF pressure and temperature sensors must be unplugged.
VISTEON DCU106 The DPF pressure and temperature sensors must be unplugged.
VISTEON DCU201 No extra steps
MARELLI MJ8F3 No extra steps
BOSCH EDC16C3 No extra steps
BOSCH EDC17CV41 No extra steps
SIEMENS / CONTINENTAL SID803 No extra steps
SIEMENS / CONTINENTAL SID807 No extra steps
SIEMENS / CONTINENTAL SID202 No extra steps
SIEMENS / CONTINENTAL SID206 No extra steps
SIEMENS / CONTINENTAL SID204 No extra steps
SIEMENS / CONTINENTAL SID211 No extra steps
SIEMENS / CONTINENTAL SID209 No extra steps
SIEMENS / CONTINENTAL SID208 No extra steps
SIEMENS / CONTINENTAL SID902 No extra steps
SIEMENS / CONTINENTAL SID803A No extra steps
CUMMINS CM2220A No extra steps
VISTEON DCU-101 No extra steps
VISTEON DCU-104 No extra steps
CUMMINS CM2220C No extra steps
BOSCH MD1CP062 No extra steps
BOSCH MD1CS027 No extra steps
SIEMENS / CONTINENTAL SID213 No extra steps
SIEMENS / CONTINENTAL SID212 No extra steps
SIEMENS / CONTINENTAL SID212EVO No extra steps
BOSCH MD1CS104 No extra steps
GMC 2 control modules
Control module What the job involves
BOSCH EDC17_CP18 The DPF pressure and temperature sensors must be unplugged.
DELCO E98 No extra steps
Honda 6 control modules
Control module What the job involves
BOSCH EDC16C31 Send original file through ticket system. The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP06 Use v1 if you experience limp or cruise control not working.
BOSCH EDC17_CP16 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP50 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C58 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C72 No extra steps
Hyundai 15 control modules
Control module What the job involves
BOSCH EDC16C39 The DPF temperature sensors can be left unplugged.
BOSCH EDC17_C08 No extra steps
BOSCH EDC17_CP14 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C57 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS012 No extra steps
CUMMINS CM2250 No extra steps
CUMMINS CM2350A No extra steps
DELPHI DCM3.7AP No extra steps
DELPHI DCM6.2AP No extra steps
DELPHI DCM7.1AP New The DPF pressure and temperature sensors must be unplugged.
DENSO The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.7 No extra steps
DENSO SH72546 No extra steps
Infiniti 7 control modules
Control module What the job involves
BOSCH EDC16CP42 The DPF pressure and temperature sensors must be unplugged.
DELPHI CRD3.30 The DPF temperature sensors must be unplugged.
DELPHI CRD3.7A The DPF temperature sensors must be unplugged.
DELPHI CRD3.N5 The DPF temperature sensors must be unplugged.
SIEMENS SID310 No extra steps
DELPHI CRD3 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
Jaguar 9 control modules
Control module What the job involves
BOSCH EDC17_CP11 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP55 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CP017 The DPF pressure and temperature sensors must be unplugged.
BOSCH MEDC17.9 The DPF pressure and temperature sensors must be unplugged.
DELPHI MPC555 New No extra steps
SIEMENS SID201 No extra steps
SIEMENS SID204 No extra steps
SIEMENS / CONTINENTAL SID204 No extra steps
Jeep 10 control modules
Control module What the job involves
BOSCH EDC16U34 No extra steps
BOSCH EDC16CP31 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C69 The DPF pressure sensor can be left unplugged.
BOSCH EDC17_C79 The DPF pressure sensor can be left unplugged.
BOSCH EDC17_CP27 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.5 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC16C31 No extra steps
DELPHI CRD2 No extra steps
Kia 15 control modules
Control module What the job involves
BOSCH EDC16C39 The DPF temperature sensors can be left unplugged.
BOSCH EDC17_C08 No extra steps
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C57 No extra steps
BOSCH EDC17_CP14 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP62 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS012 No extra steps
DELPHI DCM3.7AP No extra steps
DELPHI DCM6.2AP No extra steps
DELPHI DCM7.1AP New The DPF pressure and temperature sensors must be unplugged.
DENSO The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.7 No extra steps
BOSCH EDC16CP34 No extra steps
DELPHI DCM3.2 No extra steps
DENSO SH72546 No extra steps
Land Rover 16 control modules
Control module What the job involves
BOSCH EDC16CP39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP55 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP11 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CP017 The DPF pressure and temperature sensors must be unplugged.
BOSCH MEDC17.9 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID201 No extra steps
SIEMENS SID204 No extra steps
SIEMENS SID208 No extra steps
SIEMENS / CONTINENTAL SID204 No extra steps
SIEMENS / CONTINENTAL SID208 No extra steps
VISTEON DCU-102 No extra steps
VISTEON DCU-106 No extra steps
VISTEON DCU-101 No extra steps
VISTEON DCU-104 No extra steps
BOSCH MD1CP007 No extra steps
Lexus 4 control modules
Control module What the job involves
DENSO GEN1D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO GEN2D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO GEN3D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO RX703200 No extra steps
Maserati 1 control module
Control module What the job involves
BOSCH EDC17_C79 No extra steps
Maxus 4 control modules
Control module What the job involves
BOSCH EDC17_C53 No extra steps
BOSCH EDC17_C81 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH MD1CE108 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH MD1CS089 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
Mazda 16 control modules
Control module What the job involves
BOSCH EDC16C34 No extra steps
CONTINENTAL SID807 No extra steps
CONTINENTAL SID807EVO No extra steps
DENSO Rf7 , rf8, shxx, r2a.
SIEMENS SID208 No extra steps
BOSCH EDC16C3 No extra steps
SIEMENS / CONTINENTAL SID807 No extra steps
SIEMENS / CONTINENTAL SID202 No extra steps
SIEMENS / CONTINENTAL SID206 No extra steps
SIEMENS / CONTINENTAL SID208 No extra steps
DENSO R2A No extra steps
DENSO R2B No extra steps
DENSO RF7 No extra steps
DENSO RF8 No extra steps
DENSO RFA No extra steps
DENSO RFY No extra steps
Mercedes 52 control modules
Control module What the job involves
BOSCH EDC16C31 The DPF pressure and temperature sensors must be unplugged.We need a full read of the module, not an OBD read.
BOSCH EDC16C32 The DPF pressure and temperature sensors must be unplugged.We need a full read of the module, not an OBD read.
BOSCH EDC16CP31 The DPF pressure and temperature sensors must be unplugged.We need a full read of the module, not an OBD read.
BOSCH EDC16CP36 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C43 New The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C66 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP01 No extra steps
BOSCH EDC17CP10 New The DPF pressure and temperature sensors can be left unplugged. Solution must be applied to irom only.
BOSCH EDC17CP46 New The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17CP57 New The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP99 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1CP001 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS006 The DPF pressure sensor must be unplugged.
DELPHI DCM3.2 (CRD1/CRD.11) The processor/MPC element required DPF pressure and 2nd exhaust temperature sensors must be unplugged.
DELPHI CRD2.10 No extra steps
DELPHI CRD2.15 No extra steps
DELPHI CRD2.16 No extra steps
DELPHI CRD2.20 No extra steps
DELPHI CRD2.30 No extra steps
DELPHI CRD2.35 No extra steps
DELPHI CRD2.36 No extra steps
DELPHI CRD2.61 No extra steps
DELPHI CRD2.62 No extra steps
DELPHI CRD3.10 The DPF temperature sensors must be unplugged.
DELPHI CRD3.1R The DPF temperature sensors must be unplugged.
DELPHI CRD3.20 The DPF temperature sensors must be unplugged.
DELPHI CRD3.2R The DPF temperature sensors must be unplugged.
DELPHI CRD3.30 The DPF temperature sensors must be unplugged.
DELPHI CRD3.40 The DPF temperature sensors must be unplugged.
DELPHI CRD3.50 The DPF temperature sensors must be unplugged.
DELPHI CRD3.58 The DPF temperature sensors must be unplugged.
DELPHI CRD3.59 The DPF temperature sensors must be unplugged.
DELPHI CRD3.60 The DPF temperature sensors must be unplugged.
DELPHI CRD3.7A The DPF temperature sensors must be unplugged.
DELPHI CRD3.E1 The DPF temperature sensors must be unplugged.
DELPHI CRD3.F1 The DPF temperature sensors must be unplugged.
DELPHI CRD3P.A0 The DPF temperature sensors must be unplugged.
DELPHI CRD3P.B0 The DPF temperature sensors must be unplugged.
DELPHI CRD3P.C0 The DPF temperature sensors must be unplugged.
DELPHI CRD3P.D1 The DPF temperature sensors must be unplugged.
DELPHI CRD3P.G0 The DPF temperature sensors must be unplugged.
SIEMENS SID307 No extra steps
SIEMENS SID310 No extra steps
BOSCH EDC16C2 No extra steps
DELPHI DCM3.2 (CRD1.X) No extra steps
DELPHI CRD2 (DCM3.5) No extra steps
DELPHI CRD3 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
SIEMENS / CONTINENTAL SID307 No extra steps
CUMMINS CM2220A No extra steps
Mini 5 control modules
Control module What the job involves
BOSCH EDC16C35 No extra steps
BOSCH EDC17_C41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C50 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C56 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS001 The DPF pressure and temperature sensors must be unplugged.
Mitsubishi 16 control modules
Control module What the job involves
BOSCH EDC16C3 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C31 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16CP39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16U31 No extra steps
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP15 The DPF pressure and temperature sensors can be left unplugged.A patch is applied to the FLS area of the file.
BOSCH EDC17CP52 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID807 No extra steps
CONTINENTAL SID807EVO No extra steps
DENSO No extra steps
DENSO RA6 No extra steps
DENSO 6M60 No extra steps
DENSO 4D56 No extra steps
DENSO STD No extra steps
SIEMENS / CONTINENTAL SID321 No extra steps
Nissan 32 control modules
Control module What the job involves
BOSCH EDC16C3 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C36 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16CP33 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C45 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS006 The DPF pressure sensor must be unplugged.
BOSCH MD1CS016 The DPF pressure sensor must be unplugged.
CONTINENTAL SID321 The DPF pressure sensor must be unplugged.
DELPHI DCM3.4 No extra steps
DENSO No extra steps
DENSO SH06 No extra steps
SIEMENS SID301 No extra steps
SIEMENS SID303 No extra steps
SIEMENS SID304 No extra steps
SIEMENS SID305 No extra steps
SIEMENS SID306 No extra steps
SIEMENS SID307 No extra steps
SIEMENS SID309 No extra steps
SIEMENS SID310 No extra steps
BOSCH EDC17C11 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
SIEMENS / CONTINENTAL SID309 No extra steps
SIEMENS / CONTINENTAL SID307 No extra steps
SIEMENS / CONTINENTAL SID305 No extra steps
SIEMENS / CONTINENTAL SID303 No extra steps
SIEMENS / CONTINENTAL SID301 No extra steps
SIEMENS / CONTINENTAL SID304 No extra steps
DENSO D3 No extra steps
SIEMENS / CONTINENTAL SID321 No extra steps
Opel 49 control modules
Control module What the job involves
BOSCH EDC16C36 No extra steps
BOSCH EDC16C39 New No extra steps
BOSCH EDC16CP33 No extra steps
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C11 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C18 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C19 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C60 The DPF pressure and exhaust gas temperature sensors must be unplugged.
BOSCH EDC17C69 The DPF pressure and exhaust gas temperature sensors must be unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP47 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C59 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CSO03 The DPF temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID321 The DPF pressure sensor must be unplugged.
DELCO E87 No extra steps
DELCO E98 New No extra steps
DELPHI DCM3.7AP No extra steps
DELPHI DCM7.1A No extra steps
DELPHI DCM7.1B No extra steps
DENSO Only for 1.7 dtr (110 hp and 125 hp) and 3.0 cdti(beta) engines. On 1mb ecus dash ECU needs to be programed as non DPF dash (opcom).
MARELLI MJD6O2HW03D No extra steps
MARELLI MJD6O2HW03F No extra steps
MARELLI MJD6O2HW03G No extra steps
MARELLI MJD6O2HW04D No extra steps
MARELLI MJD6O2HW04H No extra steps
MARELLI MJD6O3HW03A No extra steps
MARELLI MJD6JOHW01D No extra steps
MARELLI MJ8F3HW1FP No extra steps
MARELLI MJ8F3HW2FP No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID309 No extra steps
SIEMENS SID310 No extra steps
MARELLI MJ8DF No extra steps
MARELLI MJD6F3 No extra steps
MARELLI MJD603 No extra steps
MARELLI MJD602 No extra steps
BOSCH EDC16C3 No extra steps
BOSCH EDC16C9 No extra steps
BOSCH MD1CS003 No extra steps
DELPHI DCM3.7 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
DENSO 275800 (SH7055) No extra steps
DELPHI DCM6.2A No extra steps
SIEMENS / CONTINENTAL SID321 No extra steps
DENSO 275800 (SH7058) No extra steps
DENSO 275800 (SH7059) No extra steps
Peugeot 46 control modules
Control module What the job involves
BOSCH EDC16C0 No extra steps
BOSCH EDC16C34 No extra steps
BOSCH EDC16C39 No extra steps
BOSCH EDC16C3 No extra steps
BOSCH EDC16CP39 No extra steps
BOSCH EDC17C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C10 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C60 The DPF temperature sensors must be unplugged.
BOSCH EDC17_C81 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP11 No extra steps
BOSCH EDC17_CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP52 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS003 The DPF temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
CONTINENTAL SID807 No extra steps
CONTINENTAL SID807EVO No extra steps
DELPHI DCM3.4 No extra steps
DELPHI DCM3.5 No extra steps
DELPHI DCM6.2A No extra steps
DELPHI DCM6.2C No extra steps
DELPHI DCM7.1A No extra steps
DELPHI DCM7.1B No extra steps
DENSO No extra steps
MARELLI MJ8DFHW00P No extra steps
MARELLI MJ8F3HW00B No extra steps
MARELLI MJ8F3HW10C No extra steps
MARELLI MJ8F3HW10P No extra steps
MARELLI MJ8F3HW20P No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID201 No extra steps
SIEMENS SID208 No extra steps
SIEMENS SID803 We need both the MPC and FLS areas of the read.
SIEMENS SID803A No extra steps
MARELLI MJ8F3 No extra steps
BOSCH EDC16CO No extra steps
BOSCH EDC15C2 No extra steps
DELPHI DCM6.2 No extra steps
SIEMENS / CONTINENTAL SID803 No extra steps
SIEMENS / CONTINENTAL SID201 No extra steps
SIEMENS / CONTINENTAL SID807 No extra steps
SIEMENS / CONTINENTAL SID208 No extra steps
SIEMENS / CONTINENTAL SID803A No extra steps
VISTEON DCU-101 No extra steps
VISTEON DCU-102 No extra steps
VISTEON DCU-104 No extra steps
VISTEON DCU-106 No extra steps
Porsche 3 control modules
Control module What the job involves
BOSCH EDC17_CP14 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP44 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
Ram Trucks 5 control modules
Control module What the job involves
BOSCH EDC17C69 The DPF pressure sensor must be unplugged.
BOSCH EDC17_C79 The DPF pressure and temperature sensors can be left unplugged.
CUMMINS CM21XX The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2300 The DPF pressure and temperature sensors must be unplugged.
MARELLI MJ8F3HW20P No extra steps
Renault 33 control modules
Control module What the job involves
BOSCH EDC16C3 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C36 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16CP33 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16CP42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C11 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C45 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP19 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP58 No extra steps
BOSCH MD1CS006 The DPF pressure sensor must be unplugged.
BOSCH MD1CS016 The DPF pressure sensor must be unplugged.
CONTINENTAL SID321 The DPF pressure sensor must be unplugged.
DELPHI DCM3.4 No extra steps
DENSO No extra steps
SIEMENS SID301 No extra steps
SIEMENS SID303 No extra steps
SIEMENS SID304 No extra steps
SIEMENS SID305 No extra steps
SIEMENS SID306 No extra steps
SIEMENS SID307 No extra steps
SIEMENS SID309 No extra steps
SIEMENS SID310 No extra steps
SIEMENS / CONTINENTAL SID310 No extra steps
SIEMENS / CONTINENTAL SID309 No extra steps
SIEMENS / CONTINENTAL SID305 No extra steps
SIEMENS / CONTINENTAL SID307 No extra steps
DENSO D3 No extra steps
SIEMENS / CONTINENTAL SID301 No extra steps
SIEMENS / CONTINENTAL SID304 No extra steps
DENSO P729 No extra steps
SIEMENS / CONTINENTAL SID321 No extra steps
Seat 30 control modules
Control module What the job involves
BOSCH EDC16U1 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC16CP34 The temperature and pressure sensors must be unplugged.
BOSCH EDC17_U01 The temperature sensors can be left unplugged.
BOSCH EDC17_U05 No extra steps
BOSCH EDC17_CP04 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP14 No extra steps
BOSCH EDC17_CP20 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C46 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C54 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C64 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C74 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP74 No extra steps
BOSCH MD1_CP004 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CS004 No extra steps
DELPHI DCM3.7 The DPF pressure and temperature sensors can be left unplugged.
DELPHI DCM6.2V New No extra steps
SIEMENS PCR2.1 No extra steps
SIEMENS PPD1.1 No extra steps
SIEMENS PPD1.2 No extra steps
SIEMENS PPD1.3 No extra steps
SIEMENS PPD1.5 No extra steps
SIEMENS / CONTINENTAL PCR2.1 No extra steps
SIEMENS / CONTINENTAL PPD1.1 No extra steps
SIEMENS / CONTINENTAL PPD1.2 No extra steps
SIEMENS / CONTINENTAL PPD1.3 No extra steps
SIEMENS / CONTINENTAL PPD1.5 No extra steps
BOSCH MD1CS104 No extra steps
Skoda 30 control modules
Control module What the job involves
BOSCH EDC16U1 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC16CP34 The temperature and pressure sensors must be unplugged.
BOSCH EDC17_U01 The temperature sensors can be left unplugged.
BOSCH EDC17_U05 No extra steps
BOSCH EDC17_CP04 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP14 No extra steps
BOSCH EDC17_CP20 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C46 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C54 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C64 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C74 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP74 No extra steps
BOSCH MD1_CP004 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CS004 No extra steps
DELPHI DCM3.7 The DPF pressure and temperature sensors can be left unplugged.
DELPHI DCM6.2V New No extra steps
SIEMENS PCR2.1 No extra steps
SIEMENS PPD1.1 No extra steps
SIEMENS PPD1.2 No extra steps
SIEMENS PPD1.3 No extra steps
SIEMENS PPD1.5 No extra steps
SIEMENS / CONTINENTAL PCR2.1 No extra steps
SIEMENS / CONTINENTAL PPD1.1 No extra steps
SIEMENS / CONTINENTAL PPD1.2 No extra steps
SIEMENS / CONTINENTAL PPD1.3 No extra steps
SIEMENS / CONTINENTAL PPD1.5 No extra steps
BOSCH MD1CS104 No extra steps
Smart 2 control modules
Control module What the job involves
BOSCH EDC16C31 The DPF pressure and temperature sensors must be unplugged.We need a full read of the module, not an OBD read.
BOSCH EDC16C32 No extra steps
Ssangyong 4 control modules
Control module What the job involves
DELPHI DCM3.2AP No extra steps
DELPHI DCM3.7AP No extra steps
DELPHI DCM6.2AP The DPF pressure and temperature sensors can be left unplugged.
DELPHI DCM3.7 No extra steps
Subaru 4 control modules
Control module What the job involves
BOSCH EDC17_CP07 No extra steps
DENSO No extra steps
DENSO D4 No extra steps
DENSO DT No extra steps
Suzuki 16 control modules
Control module What the job involves
BOSCH EDC16C3 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C69 The DPF pressure and temperature sensors must be unplugged.
MARELLI MJD6O2HW04L No extra steps
MARELLI MJD6JOHW01D No extra steps
MARELLI MJ8DFHW00P No extra steps
MARELLI MJ8DSHW01S No extra steps
MARELLI MJ8F3HW00B No extra steps
MARELLI MJ8F3HW1FP No extra steps
MARELLI MJ8D No extra steps
MARELLI MJ8F No extra steps
MARELLI MJD6F3 No extra steps
MARELLI MJD602 No extra steps
BOSCH EDC16C36 No extra steps
MARELLI MJ8DS No extra steps
Toyota 14 control modules
Control module What the job involves
BOSCH EDC16C34 No extra steps
BOSCH EDC17_CP07 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C47 No extra steps
BOSCH EDC17C60 The DPF temperature sensors must be unplugged.
BOSCH EDC17_C73 No extra steps
BOSCH MD1CS003 The DPF temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.5 No extra steps
DELPHI DCM6.2A No extra steps
DELPHI DCM7.1A No extra steps
DENSO GEN1D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO GEN2D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO GEN3D The fifth injector plug is unplugged and a 1k ohm resistor fitted in its place.
DENSO RX703200 No extra steps
Vauxhall 7 control modules
Control module What the job involves
BOSCH EDC17_C84 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS199 The DPF pressure and temperature sensors must be unplugged.
DELCO E98 No extra steps
MARELLI MJD6O2HW04H No extra steps
MARELLI MJ8F3HW1FP No extra steps
MARELLI MJ8F3HW2FP No extra steps
TRANSTRON No extra steps
Volvo 18 control modules
Control module What the job involves
BOSCH EDC16C31 No extra steps
BOSCH EDC16C34 No extra steps
BOSCH EDC17_CP22 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP48 The DPF pressure sensor can be left unplugged.
BOSCH EDC17_CP68 The DPF pressure and temperature sensors can be left unplugged.
CONTINENTAL SID807 The DPF pressure and temperature sensors can be left unplugged.
CONTINENTAL SID807EVO The DPF pressure and temperature sensors can be left unplugged.
SIEMENS SID206 No extra steps
SIEMENS SID803A No extra steps
DENSO VED The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC7UC31 No extra steps
SIEMENS / CONTINENTAL SID803 No extra steps
SIEMENS / CONTINENTAL SID807 No extra steps
SIEMENS / CONTINENTAL SID202 No extra steps
SIEMENS / CONTINENTAL SID206 No extra steps
TRW EMS2.3 No extra steps
TRW EMS2.4 No extra steps
SIEMENS / CONTINENTAL SID803A No extra steps
VW 28 control modules
Control module What the job involves
BOSCH EDC16U1 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC16CP34 The temperature and pressure sensors must be unplugged.
BOSCH EDC17_U01 The temperature sensors can be left unplugged.
BOSCH EDC17_U05 No extra steps
BOSCH EDC17_CP04 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP14 No extra steps
BOSCH EDC17_CP20 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP24 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP44 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_CP54 No extra steps
BOSCH EDC17_C46 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C54 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C64 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17C74 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP74 No extra steps
BOSCH MD1_CP004 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CP014 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1CP061 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1_CS004 No extra steps
DELPHI DCM3.7 The DPF pressure and temperature sensors can be left unplugged.
DELPHI DCM6.2V New No extra steps
SIEMENS PCR2.1 No extra steps
SIEMENS PPD1.1 No extra steps
SIEMENS PPD1.2 No extra steps
SIEMENS PPD1.3 No extra steps
SIEMENS PPD1.5 No extra steps
Aebi Schmidt 3 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP52 No extra steps
Agco 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Agrale 2 control modules
Control module What the job involves
BOSCH EDC7UC31 No extra steps
CUMMINS CM2220A No extra steps
Agrifac 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Amazone 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Antonio Carraro 1 control module
Control module What the job involves
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
Arbos 1 control module
Control module What the job involves
BOSCH EDC17C87 The DPF pressure and temperature sensors must be unplugged.
Artec 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Ashok Leyland 1 control module
Control module What the job involves
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Astra 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Atlas Copco 3 control modules
Control module What the job involves
BOSCH EDC17CV45 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV52 No extra steps
PHOENIX L34 New No extra steps
Baic 1 control module
Control module What the job involves
DELPHI DCM6.2AP No extra steps
Baw 1 control module
Control module What the job involves
BOSCH EDC17CV54 No extra steps
Belarus 2 control modules
Control module What the job involves
BOSCH EDC7UC31 No extra steps
BOSCH EDC17CV54 No extra steps
BMC 2 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
Bobcat 3 control modules
Control module What the job involves
BOSCH EDC17C87 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.7 No extra steps
Bomag 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Bonetti 1 control module
Control module What the job involves
BOSCH EDC16C39 The temperature sensors must be unplugged.We need a full read of the module, not an OBD read.
Bouwmann 1 control module
Control module What the job involves
BOSCH EDC16C39 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
Bravo 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Brilliance 1 control module
Control module What the job involves
CUMMINS CM2220C No extra steps
Buhler Versatile 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
C&c 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Cadillac 2 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
BOSCH EDC16C9 No extra steps
CAMC 1 control module
Control module What the job involves
BOSCH EDC17CV44 The temperature sensors must be unplugged.
Camc Trucks 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Camox 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Case 9 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS069 No extra steps
BOSCH EDC7UC31 No extra steps
BOSCH EDC17CV41 No extra steps
BOSCH MD1CE101 No extra steps
DELPHI DCM3.7 No extra steps
TRANSTRON SH7059 No extra steps
TRANSTRON SH72533 No extra steps
Caterpillar 8 control modules
Control module What the job involves
BOSCH EDC17CV42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV45 The DPF pressure and temperature sensors must be unplugged.
CAT ADEM4 New The DPF pressure and temperature sensors must be unplugged.
CAT ADEM5 New The DPF pressure and temperature sensors must be unplugged.
DENSO The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV44 No extra steps
TRANSTRON SH7059 No extra steps
Challenger 3 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Changan 1 control module
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure must be unplugged.
Chenglong 1 control module
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
Claas 11 control modules
Control module What the job involves
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV52 No extra steps
PHOENIX L23 New No extra steps
PHOENIX L33 No extra steps
SIEMENS / CONTINENTAL MCM2 No extra steps
PHOENIX L21 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
SIEMENS / CONTINENTAL ACM2 No extra steps
SIEMENS / CONTINENTAL ACM2.1 No extra steps
Crawler Excavator 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Cummins 1 control module
Control module What the job involves
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
Cummins Stationary Engines 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Daewoo 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Daewoo Truck 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
DAF 3 control modules
Control module What the job involves
CUMMINS CM2350 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
DELPHI ETC3 No extra steps
Dcd 1 control module
Control module What the job involves
BOSCH MD1CC878 No extra steps
Detroit 2 control modules
Control module What the job involves
SIEMENS / CONTINENTAL MCM2 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
Deutz 4 control modules
Control module What the job involves
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV56 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CC878 No extra steps
Dodge 5 control modules
Control module What the job involves
BOSCH EDC16CP31 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16U31 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC17C79 No extra steps
BOSCH EDC17C49 No extra steps
Dong Feng 1 control module
Control module What the job involves
BOSCH EDC17C81 No extra steps
Dong Feng Trucks 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
Dongfeng 5 control modules
Control module What the job involves
BOSCH EDC16C39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2220C No extra steps
Donkey Forklifts 1 control module
Control module What the job involves
BOSCH EDC17CV45 No extra steps
Doosan 4 control modules
Control module What the job involves
BOSCH EDC17C87 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV41 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2250 No extra steps
Doppstadt 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Dr Motor 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Durso 1 control module
Control module What the job involves
BOSCH EDC17C49 No extra steps
Effa 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Effedi 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Eicher 1 control module
Control module What the job involves
BOSCH MD1CC898 The DPF pressure and temperature sensors must be unplugged.
Equus 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Erkunt 1 control module
Control module What the job involves
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Everun 1 control module
Control module What the job involves
BOSCH EDC17C81 The DPF pressure and temperature sensors must be unplugged.
Evo 1 control module
Control module What the job involves
BOSCH MD1CS089 No extra steps
Faresin 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Fase Uno 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Faw 2 control modules
Control module What the job involves
BOSCH EDC17CV44 No extra steps
BOSCH EDC17CV54 No extra steps
FAW TRUCKS 2 control modules
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Fendt 8 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV42 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 No extra steps
BOSCH EDC17CV56 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH MD1CC878 No extra steps
Ferrari Agri 1 control module
Control module What the job involves
DENSO No extra steps
Foday 1 control module
Control module What the job involves
BOSCH EDC17C53 No extra steps
Force 1 control module
Control module What the job involves
BOSCH EDC17C53 No extra steps
Ford Trucks 2 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
Foton 7 control modules
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure and temperature sensors can be left unplugged.
BOSCH MD1CS089 The DPF pressure sensor can be left unplugged.
CUMMINS CM2220C The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH EDC17CV44 No extra steps
BOSCH EDC17C55 No extra steps
CUMMINS CM2220A No extra steps
Fpt Industrial 2 control modules
Control module What the job involves
BOSCH EDC7UC31 No extra steps
BOSCH MD1CE101 No extra steps
Freightliner 6 control modules
Control module What the job involves
SIEMENS / CONTINENTAL MCM2 No extra steps
CUMMINS CM2150D No extra steps
CUMMINS CM2250 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
SIEMENS / CONTINENTAL ACM2 No extra steps
SIEMENS / CONTINENTAL ACM2.1 No extra steps
Fuchs 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Fuso 1 control module
Control module What the job involves
BOSCH MD1CS069 No extra steps
GAZ 5 control modules
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2220C The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
CUMMINS CM2220A No extra steps
Gehl 3 control modules
Control module What the job involves
BOSCH EDC17CV52 No extra steps
BOSCH EDC17CV54 No extra steps
PHOENIX L23 No extra steps
Gleaner 3 control modules
Control module What the job involves
BOSCH EDC17CV44 No extra steps
BOSCH EDC17CV41 No extra steps
BOSCH EDC17CV54 No extra steps
Gonow 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Great Wall 8 control modules
Control module What the job involves
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS089 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM3.7AP No extra steps
DELPHI DCM7.1AP The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C39 No extra steps
BOSCH EDC17C63 No extra steps
DELPHI DCM6.2AP No extra steps
DELPHI DCM3.7 No extra steps
Hamm 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Hangcha 1 control module
Control module What the job involves
BOSCH EDC17C81 The DPF pressure must be unplugged.
Hanlake 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Hardi 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Hattat 2 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH MD1CS069 - DPF PRESSURE AND TEMPERATURE SENSORS MUST BE DISCONNECTED! No extra steps
Hefton 1 control module
Control module What the job involves
BOSCH EDC17C81 The DPF pressure and temperature sensors must be unplugged.
Heli 1 control module
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure and temperature sensors must be unplugged.
Hidromek 1 control module
Control module What the job involves
BOSCH EDC17CV45 The DPF pressure and temperature sensors must be unplugged.
Higer 2 control modules
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
Hino 6 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
DENSO SH7058 No extra steps
BOSCH EDC7UC31 No extra steps
DENSO RX703200 No extra steps
DENSO 89564 No extra steps
DENSO YK71 No extra steps
Hitachi 6 control modules
Control module What the job involves
BOSCH EDC17CV52 No extra steps
TRANSTRON SH7059 No extra steps
TRANSTRON SH72544 No extra steps
CUMMINS CM2250 No extra steps
TRANSTRON 4JJ1 No extra steps
CUMMINS CM2350A No extra steps
Holden 4 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
DELCO E98 No extra steps
DELPHI DCM3.7 No extra steps
TRANSTRON 4JJ1 No extra steps
Holmer 2 control modules
Control module What the job involves
SIEMENS / CONTINENTAL MCM2 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
Howo 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Hsm 1 control module
Control module What the job involves
TRW EMS2.3 No extra steps
Hydrema 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Hyster Container Handlers 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Hyundai Truck 2 control modules
Control module What the job involves
DELPHI ETC3 No extra steps
DENSO F4HD No extra steps
Impodan 1 control module
Control module What the job involves
BOSCH EDC17C87 The DPF pressure and temperature sensors must be unplugged.
Ineos 1 control module
Control module What the job involves
BOSCH MD1CP032 The DPF pressure and temperature sensors can be left unplugged.
International 2 control modules
Control module What the job involves
BOSCH EDC17CV42 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID904 No extra steps
International Truck 5 control modules
Control module What the job involves
BOSCH EDC7UC31 No extra steps
BOSCH EDC17CV42 No extra steps
SIEMENS / CONTINENTAL SID904 No extra steps
SIEMENS / CONTINENTAL SID913 No extra steps
SIEMENS / CONTINENTAL SID914 No extra steps
Isuzu 15 control modules
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C83 No extra steps
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS089 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM6.2AP The DPF pressure and temperature sensors must be unplugged.
DENSO No extra steps
TRANSTRON No extra steps
BOSCH EDC17C55 No extra steps
BOSCH EDC17C63 No extra steps
TRANSTRON SH72544 No extra steps
TRANSTRON SH7059 No extra steps
TRANSTRON 4JK1 No extra steps
TRANSTRON SH72533 No extra steps
BOSCH MD1CE108 No extra steps
TRANSTRON 4JJ1 No extra steps
Italmix 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Iveco 10 control modules
Control module What the job involves
BOSCH EDC16C39 The temperature sensors must be unplugged.
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C69 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CP52 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17CV41 No extra steps
BOSCH MD1CS069 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH EDC17C53 No extra steps
BOSCH EDC17CV44 No extra steps
BOSCH MD1CE101 No extra steps
JAC 8 control modules
Control module What the job involves
BOSCH EDC17_C53 No extra steps
BOSCH EDC17_C81 No extra steps
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM6.2AP The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC16C39 No extra steps
BOSCH EDC7UC31 No extra steps
CUMMINS CM2220A No extra steps
BOSCH MD1CC878 No extra steps
Jca 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
JCB 6 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2250 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM7.24 No extra steps
Jenz 2 control modules
Control module What the job involves
CONTINENTAL ACM2.1 - SOLUTION MUST BE APPLIED TO BOTH MCM AND ACM UNITS! No extra steps
CONTINENTAL MCM2 - SOLUTION MUST BE APPLIED TO BOTH MCM AND ACM UNITS! No extra steps
Jie 1 control module
Control module What the job involves
BOSCH MD1CC878 No extra steps
Jinbei 1 control module
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure and temperature sensors can be left unplugged.
JMC 5 control modules
Control module What the job involves
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C55 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C63 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH EDC17C81 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH EDC17_C81 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
Jmc Yusheng 1 control module
Control module What the job involves
CONTINENTAL SID604 The DPF pressure and temperature sensors must be unplugged.
John Deere 10 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors can be left unplugged.
DENSO The DPF pressure and temperature sensors must be unplugged.
PHOENIX L21 New No extra steps
PHOENIX L22 New No extra steps
PHOENIX L23 New No extra steps
PHOENIX L33 New No extra steps
PHOENIX L34 New No extra steps
PHOENIX L40 New No extra steps
BOSCH EDC17C49 No extra steps
Kalmar 1 control module
Control module What the job involves
BOSCH EDC17CV54 No extra steps
Kamaz 3 control modules
Control module What the job involves
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH MD1CE100 No extra steps
Karsan 1 control module
Control module What the job involves
BOSCH EDC17CV41 No extra steps
Kato Imer 1 control module
Control module What the job involves
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Kenworth 3 control modules
Control module What the job involves
CAT ADEM4 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2250 No extra steps
CUMMINS CM2350A No extra steps
Kenworth Truck 2 control modules
Control module What the job involves
DELPHI ETC3 No extra steps
CUMMINS CM2150D No extra steps
King Long 3 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 No extra steps
DELPHI DCM3.2 No extra steps
Kioti 2 control modules
Control module What the job involves
DELPHI DCM3.7AP No extra steps
DELPHI DCM3.7 No extra steps
Kobelco 2 control modules
Control module What the job involves
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
DENSO SH7058 No extra steps
Komatsu 5 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
CUMMINS CM2350A No extra steps
Komatsu / Valmet 1 control module
Control module What the job involves
CUMMINS CM2250 No extra steps
Kramer 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Kubota 5 control modules
Control module What the job involves
BOSCH EDC17CV45 No extra steps
DENSO No extra steps
DENSO 275770 No extra steps
DENSO STD No extra steps
DENSO STD4 No extra steps
Lamborghini Tractors 3 control modules
Control module What the job involves
BOSCH EDC17C53 No extra steps
BOSCH EDC17CV52 No extra steps
BOSCH EDC17CV54 No extra steps
Lancia 21 control modules
Control module What the job involves
BOSCH EDC15C2 No extra steps
BOSCH EDC16C39 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C49 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP27 No extra steps
MARELLI MJD6F3HW03T No extra steps
MARELLI MJD6F3HW04T No extra steps
MARELLI MJD6JFHW01C No extra steps
MARELLI MJ8DFHW00T No extra steps
MARELLI MJ8DFHW00Y No extra steps
MARELLI MJ8F3HW00C No extra steps
MARELLI MJ8F3HW1FC No extra steps
MARELLI MJ8F3HW1FL No extra steps
MARELLI MJ9DFHW000 The DPF pressure and temperature sensors must be unplugged.
SIEMENS SID803A No extra steps
MARELLI MJ8F3 No extra steps
MARELLI MJ8F2 No extra steps
MARELLI MJ8DF No extra steps
MARELLI MJD6F3 No extra steps
BOSCH EDC16C9 No extra steps
BOSCH EDC17C79 No extra steps
MARELLI MJ9DF No extra steps
Landini 4 control modules
Control module What the job involves
BOSCH EDC17CV52 No extra steps
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV54 No extra steps
BOSCH MD1CC878 No extra steps
Lannen 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
Laverda 2 control modules
Control module What the job involves
BOSCH EDC17CV44 No extra steps
BOSCH EDC17CV54 No extra steps
Ldv 3 control modules
Control module What the job involves
BOSCH EDC16C39 No extra steps
BOSCH EDC17_C53 The DPF pressure and temperature sensors can be left unplugged.
BOSCH EDC17_C81 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
Liebherr 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Linde 2 control modules
Control module What the job involves
BOSCH EDC17CV52 No extra steps
BOSCH EDC17CP20 No extra steps
Lindner 1 control module
Control module What the job involves
BOSCH EDC17C49 No extra steps
Ljungby 2 control modules
Control module What the job involves
BOSCH EDC17CV44 No extra steps
BOSCH EDC17CV41 No extra steps
Logset 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
London 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Lovol 1 control module
Control module What the job involves
BOSCH EDC17C87 The DPF pressure and temperature sensors must be unplugged.
Lti 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Lucas G 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Mack 2 control modules
Control module What the job involves
TRW ACM2.3 This has to be processed together with the TRW EMS2.3 unit.
TRW EMS2.3 This has to be processed together with the TRW ACM2.3 unit.
Mahindra 6 control modules
Control module What the job involves
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_C63 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH EDC17_C81 The DPF pressure and exhaust gas temperature sensors can be left unplugged.
BOSCH MD1CS018 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 No extra steps
BOSCH EDC17C55 No extra steps
MAN 5 control modules
Control module What the job involves
BOSCH EDC7C32 The DPF pressure and exhaust gas temperature sensors must be unplugged.
BOSCH EDC17CV42 The DPF pressure and exhaust gas temperature sensors must be unplugged.
BOSCH MD1CE100 The DPF pressure and temperature sensors must be unplugged.
DELPHI DCM6.2V New No extra steps
BOSCH MD1CS104 No extra steps
Manitou 4 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV45 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV52 No extra steps
PHOENIX L34 New No extra steps
Manitu 2 control modules
Control module What the job involves
BOSCH EDC17CV52 No extra steps
BOSCH EDC17CV54 No extra steps
Massey Ferguson 6 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH EDC17C63 No extra steps
BOSCH EDC17C55 No extra steps
Matrot 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
MAZ 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
Mc Cormick 3 control modules
Control module What the job involves
BOSCH EDC7UC31 No extra steps
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV54 No extra steps
Mccormick 1 control module
Control module What the job involves
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
Menzi Muck 1 control module
Control module What the job involves
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
Mercedes Truck 8 control modules
Control module What the job involves
CONTINENTAL ACM2.1 The work has to be applied to both the ACM AND MCM units.
CONTINENTAL ACM2.2 The work has to be applied to both the ACM AND MCM units.
CONTINENTAL MCM2 The work has to be applied to both the ACM AND MCM units.
CONTINENTAL MCM2.1 The work has to be applied to both the ACM AND MCM units.
SIEMENS / CONTINENTAL MCM2 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
SIEMENS / CONTINENTAL ACM2 No extra steps
SIEMENS / CONTINENTAL ACM2.1 No extra steps
Merlo 1 control module
Control module What the job involves
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
MG 1 control module
Control module What the job involves
BOSCH EDC17_C53 The DPF pressure and temperature sensors must be unplugged.
Minelli 1 control module
Control module What the job involves
BOSCH EDC17C49 No extra steps
New Holland 7 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV41 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CS069 No extra steps
BOSCH EDC7UC31 No extra steps
BOSCH MD1CE101 No extra steps
CUMMINS CM2350A No extra steps
Otokar 1 control module
Control module What the job involves
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
Pellenc 1 control module
Control module What the job involves
BOSCH EDC17C49 No extra steps
Peterbilt 2 control modules
Control module What the job involves
DELPHI ETC3 The DPF pressure and temperature sensors can be left unplugged.
CUMMINS CM2250 No extra steps
Peterbilt Truck 2 control modules
Control module What the job involves
DELPHI ETC3 No extra steps
CUMMINS CM2150D No extra steps
Piaggio 1 control module
Control module What the job involves
BOSCH EDC17_C08 The DPF pressure and temperature sensors can be left unplugged.
Pouchain 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
Prinoth Leitwolf 2 control modules
Control module What the job involves
SIEMENS / CONTINENTAL MCM2 No extra steps
SIEMENS / CONTINENTAL HDEP MCM No extra steps
Qchai 1 control module
Control module What the job involves
BOSCH MD1CC878 No extra steps
Qingling 2 control modules
Control module What the job involves
DELPHI DCM6.2AP The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CC878 No extra steps
Ram 1 control module
Control module What the job involves
CUMMINS CM2350B No extra steps
Range Rover 4 control modules
Control module What the job involves
BOSCH MD1CP007 No extra steps
BOSCH EDC17CP42 No extra steps
BOSCH EDC17CP55 No extra steps
BOSCH MEDC17.9 No extra steps
Rasco 1 control module
Control module What the job involves
BOSCH EDC17C49 The DPF pressure and temperature sensors must be unplugged.
Ravo 1 control module
Control module What the job involves
BOSCH EDC17CV41 No extra steps
Renault Truck 2 control modules
Control module What the job involves
TRW EMS2.3 No extra steps
TRW EMS2.4 No extra steps
Renault Trucks 2 control modules
Control module What the job involves
TRW ACM2.3 This has to be processed together with the TRW EMS2.3 unit.
TRW EMS2.3 This has to be processed together with the TRW ACM2.3 unit.
Rmh Lachish 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Rostselmash 1 control module
Control module What the job involves
CUMMINS CM2350A No extra steps
Rottne 1 control module
Control module What the job involves
PHOENIX L34 New No extra steps
Saab 5 control modules
Control module What the job involves
BOSCH EDC17_C19 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17_CP21 No extra steps
BOSCH EDC16C39 No extra steps
BOSCH EDC16C9 No extra steps
DENSO SH7058 No extra steps
Saic 2 control modules
Control module What the job involves
BOSCH EDC17C53 No extra steps
BOSCH EDC17C81 No extra steps
Same 3 control modules
Control module What the job involves
BOSCH EDC17C53 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV56 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 No extra steps
Sampo Rosenlew 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Samsung 1 control module
Control module What the job involves
BOSCH EDC16CP33 The DPF pressure and temperature sensors must be unplugged.
SANY 3 control modules
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2350A The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CC878 No extra steps
Scania 2 control modules
Control module What the job involves
MOTOROLA EMS S8 The DPF pressure sensor must be unplugged.
BOSCH EDC7UC31 No extra steps
Schaffer 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Sennebogen 1 control module
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
Shacman 1 control module
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
Shaolin 1 control module
Control module What the job involves
CUMMINS CM2220C No extra steps
Sinotruk 1 control module
Control module What the job involves
BOSCH EDC17CV44 No extra steps
Skyjack 1 control module
Control module What the job involves
CUMMINS CM2350A No extra steps
Solmec 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
SOR 1 control module
Control module What the job involves
BOSCH EDC17CV41 No extra steps
Ssang Yong 1 control module
Control module What the job involves
DELPHI DCM3.2 No extra steps
Sterling Trucks 1 control module
Control module What the job involves
CUMMINS CM2150D No extra steps
Steyr 2 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17C49 No extra steps
Still 1 control module
Control module What the job involves
BOSCH EDC17CV52 No extra steps
Storti 1 control module
Control module What the job involves
BOSCH EDC17CV41 No extra steps
Sumitomo 1 control module
Control module What the job involves
TRANSTRON SH7059 No extra steps
Tac 1 control module
Control module What the job involves
MARELLI MJ8F3HW00B No extra steps
Takeuchi 3 control modules
Control module What the job involves
BOSCH EDC17CV45 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV52 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Tata 5 control modules
Control module What the job involves
DELPHI DCM3.4 No extra steps
DELPHI DCM3.7 No extra steps
BOSCH MD1CS018 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV41 No extra steps
DELPHI DCM3.2 No extra steps
Tata Trucks 1 control module
Control module What the job involves
BOSCH EDC17CV54 No extra steps
Tatra 1 control module
Control module What the job involves
DELPHI ETC3 No extra steps
Temsa 2 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2350A No extra steps
Terberg 1 control module
Control module What the job involves
TRW EMS2.4 No extra steps
Tiffin 1 control module
Control module What the job involves
CUMMINS CM2150D No extra steps
Tigercat 2 control modules
Control module What the job involves
BOSCH EDC17CV41 No extra steps
CUMMINS CM2250 The DPF pressure and temperature sensors can be left unplugged.
Uaz 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Valtra 6 control modules
Control module What the job involves
BOSCH EDC17CV41 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC7UC31 No extra steps
BOSCH EDC17C49 No extra steps
BOSCH EDC17C63 No extra steps
Volkswagen 33 control modules
Control module What the job involves
BOSCH EDC17U05 No extra steps
BOSCH EDC16CP34 No extra steps
BOSCH EDC17CP54 No extra steps
BOSCH EDC17CP74 No extra steps
BOSCH MD1CP004 No extra steps
BOSCH EDC16U31 No extra steps
BOSCH EDC17C64 No extra steps
BOSCH EDC17CP14 No extra steps
BOSCH EDC17CP20 No extra steps
BOSCH EDC17CP44 No extra steps
BOSCH EDC17CP04 No extra steps
BOSCH EDC17C46 No extra steps
BOSCH EDC17CP24 No extra steps
BOSCH EDC17U01 No extra steps
BOSCH EDC16U34 No extra steps
BOSCH EDC17C54 No extra steps
BOSCH EDC17C74 No extra steps
SIEMENS / CONTINENTAL PCR2.1 No extra steps
DELPHI DCM6.2V No extra steps
DELPHI DCM3.7 No extra steps
BOSCH MD1CP014 No extra steps
CUMMINS CM2220A No extra steps
BOSCH MD1CS004 No extra steps
CUMMINS CM2220C No extra steps
SIEMENS / CONTINENTAL PPD1.1 No extra steps
SIEMENS / CONTINENTAL PPD1.2 No extra steps
SIEMENS / CONTINENTAL PPD1.3 No extra steps
SIEMENS / CONTINENTAL PPD1.5 No extra steps
BOSCH MD1CS014 No extra steps
BOSCH MD1CS027 No extra steps
BOSCH MD1CP061 No extra steps
SIEMENS / CONTINENTAL SID213 No extra steps
BOSCH MD1CS104 No extra steps
Volkswagen Trucks 3 control modules
Control module What the job involves
BOSCH EDC7C32 The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2220C The DPF pressure and temperature sensors must be unplugged.
CUMMINS CM2220A No extra steps
Volvo Buses 2 control modules
Control module What the job involves
TRW EMS2.3 No extra steps
TRW EMS2.4 No extra steps
Volvo Industrial 1 control module
Control module What the job involves
DENSO The DPF pressure and temperature sensors must be unplugged.
Volvo Truck 2 control modules
Control module What the job involves
TRW EMS2.3 No extra steps
TRW EMS2.4 No extra steps
Volvo Trucks 5 control modules
Control module What the job involves
TRW EMS2 The DPF pressure and aftertreatment ECU must be unplugged.
TRW ACM2.3 This has to be processed together with the TRW EMS2.3 unit.
TRW EMS2.3 This has to be processed together with the TRW ACM2.3 unit.
TRW EMS2.4 No extra steps
CUMMINS CM2250 No extra steps
Wacker Neuson 2 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV52 The DPF pressure and temperature sensors must be unplugged.
Weichai 2 control modules
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
BOSCH MD1CC878 No extra steps
Weidemann 2 control modules
Control module What the job involves
BOSCH EDC17C49 No extra steps
BOSCH EDC17CV54 The DPF pressure and temperature sensors must be unplugged.
Western Star 2 control modules
Control module What the job involves
SIEMENS / CONTINENTAL ACM2 No extra steps
SIEMENS / CONTINENTAL ACM2.1 No extra steps
Western Star Trucks 1 control module
Control module What the job involves
TEMIC ACM The DPF pressure and temperature sensors must be unplugged.
Wirtgen 2 control modules
Control module What the job involves
CUMMINS CM2250 No extra steps
CUMMINS CM2350A No extra steps
XCMG 1 control module
Control module What the job involves
BOSCH EDC17CV44 The DPF pressure and temperature sensors must be unplugged.
Xinchai 1 control module
Control module What the job involves
BOSCH EDC17_C81 The DPF pressure and temperature sensors must be unplugged.
Yanmar 1 control module
Control module What the job involves
BOSCH EDC17CV54 The DPF pressure and temperature sensors can be left unplugged.
Yutong 1 control module
Control module What the job involves
BOSCH EDC7UC31 No extra steps
Zebra 1 control module
Control module What the job involves
BOSCH EDC16C39 No extra steps
Zetor 2 control modules
Control module What the job involves
BOSCH EDC17CV56 The DPF pressure and temperature sensors must be unplugged.
BOSCH EDC17CV54 No extra steps
HOW TO READ THIS

Each row is a control module we have a working solution for. The note tells you what typically also has to happen on the car, because where a part has to be unplugged that is mechanical work on the vehicle, not something a file alone can do.

We have more than one route to most of these jobs, so the requirements on your car are confirmed when we look at it rather than taken from this table. Treat the notes as what to expect, not as a fixed instruction.

Marked New means the solution is recent, so we check those individually before quoting.

Reviews

What customers say

It’s been a bit of a journey (3 years to be exact) in 2023 I had a Quicksilver exhaust system a remap and a reduced top pulley fitted to my 5.0SC L405 Range Rover, last week I finally got around to getting it on the dyno, it’s smoothed out the…
Paul Ainsworth Land Rover
Great service, start to finish XHP GEARBOX REMAP. Saturday morning in be and out gear changes much quicker. Highly recommended!!
Robert Sandys
Very good service. They must do loads of remaps each week but still took the time to talk me through the process and answer all my questions. Very knowledgeable, decent people at JFA. They get many good reviews and after having my Abarth remapped with them i can see why.…
Very Good Service – Abarth 595 (2021) Abarth 595 1.4T

Read more reviews →

Questions

Common questions

Is a DPF delete legal?

Not on a road car. Removing or disabling a DPF makes a vehicle illegal to use on a UK public road and it will fail an MOT. We only supply it for off-road use: competition, private land or export.

Can you fix my DPF instead?

Yes. Most blocked DPFs can be recovered with a forced regeneration or an off-car clean, and we find the fault that blocked it so it does not happen again.

How long does it take?

Diagnosis and a forced regeneration are usually done the same day. An off-car clean or replacement depends on parts, and we tell you when we quote.

The JF Automotive team
Meet the team

The team behind every job

Technicians, calibrators and the front desk, all in Maidstone. No call centre and no subcontracting - the person who books you in is the person you can ask about the job.

Newsletter

Offers on parts and tuning, first

A short email now and then: new vehicle support, parts deals, open days. Nothing daily.
